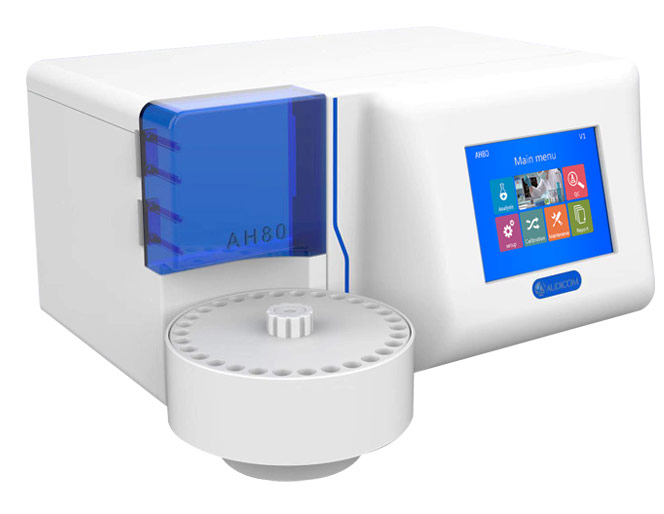

The fully automatic vacuum blood collection tube sampling glycated hemoglobin analyzer was launched in 2021. AH80 adopts the gold standard HbA1c testing methodology HPLC.
Relying on the company’s core patented technology, it can accurately separate 6 hemoglobin components including HbA1c, HbA0 and HbF. With “precision, efficiency and stable performance” as core advantages, its CV≤3.0%. It supports vacuum blood collection tube sampling and fully automatic batch injection, making operation more convenient and results more accurate; it holds multiple certifications including ISO 13485, ISO 9001 and National Medical Products Administration, and is specially designed for professional testing scenarios such as clinical and large laboratories.
● Automatic self-inspection and cleaning at startup
The instrument has startup self-inspection and system cleaning functions.

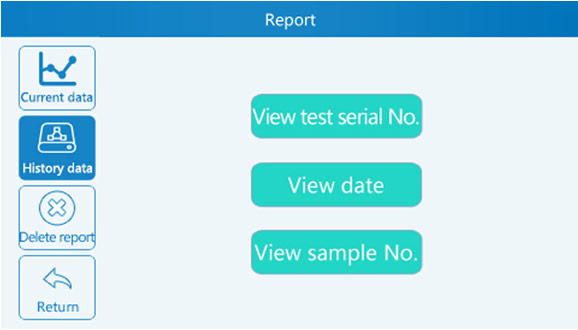

● Sample query
Sample query can be performed by date, test serial number and sample number.

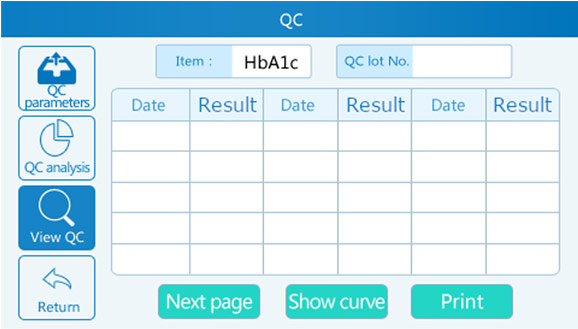

● Quality control query function
Has quality control analysis, quality control curve query and quality control data query functions.

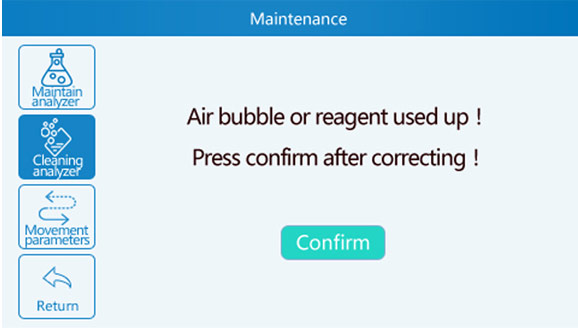

● Automatic reagent replacement prompt
During operation, the system automatically detects the usage status of current reagents. When one reagent is about to be used up, the system automatically prompts reagent replacement.
● Number of chromatographic column uses
Not less than 1000 times.

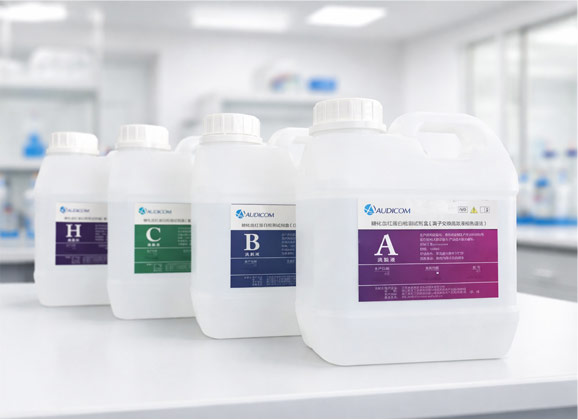

● Reagent composition (original factory)
The reagents consist of Eluent A, Eluent B, Eluent C, Hemolysis reagent H, and chromatographic column (optional).| Test method | Ion-exchange high performance liquid chromatography |
| Repeatability | CV≤3.0% (International standard). |
| Report output | The test report simultaneously outputs IFCC concentration value, NGSP area percentage and ADAG average blood glucose. |
| Communication interface | RS232 and USB communication interfaces, can connect with HIS/LIS systems, can connect barcode scanner. |
| Power supply | ～220V±22V、50Hz±1Hz、250VA(HPLC). |
