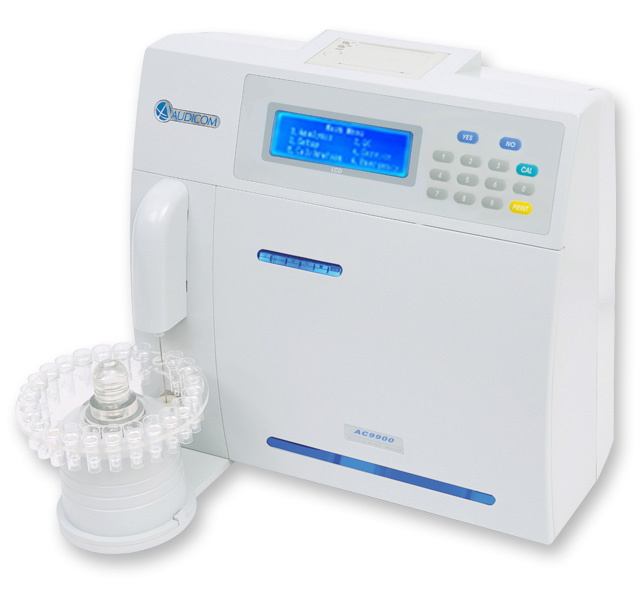

The AC9000 series electrolyte analyzer, as the company's cornerstone product, has been on the market for nearly 30 years.
Tens of thousands of units have been produced cumulatively, with the largest single installation exceeding 1,000 units. AUDICOM is one of the earliest electrolyte analyzer manufacturers in China, and its products serve more than 60 countries and tens of thousands of overseas medical institutions.

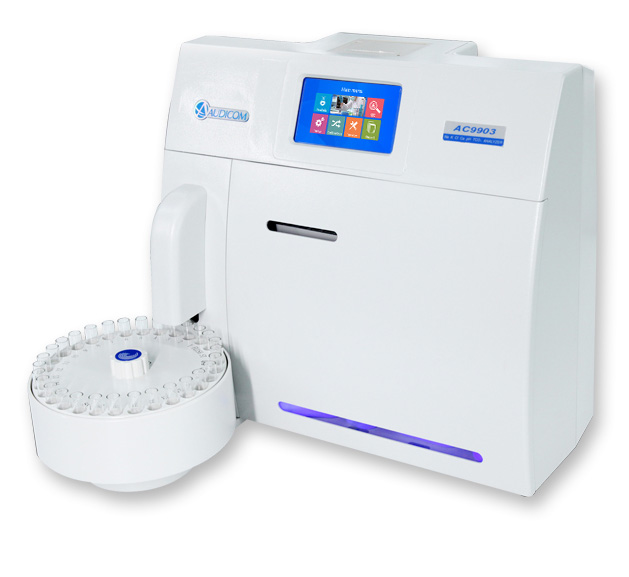

The latest AC9X03 series features automatic vacuum blood collection tube sampling, color touch screen, one-time loading of 30 samples and barcode scanner function; the equipment has excellent stability and repeatability (CV≤1.5%), adopts the ion selective electrode method, optional pressure-sensing TCO₂ detection technology, combined with original factory reagents, integrates bubble/liquid level detection, automatic cleaning and calibration functions to ensure accurate and reliable results.
AUDICOM will soon launch urine-specific electrolyte analyzers, outdoor mobile electrolyte analyzers and small pet electrolyte analyzers. If you are interested in the above products, please contact us.
| click here to download brochure |
|
|

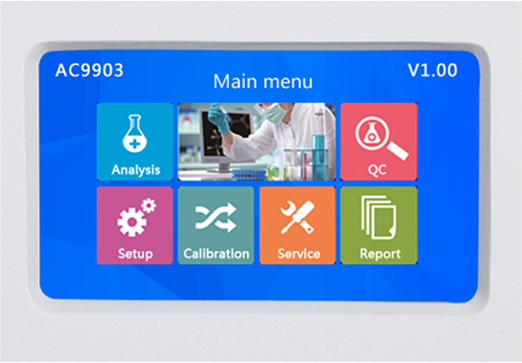

● Color touch screen
The instrument adopts a color touch screen, simplifying the human-machine operation process, with good interchangeability, providing users with a high-quality operating experience.

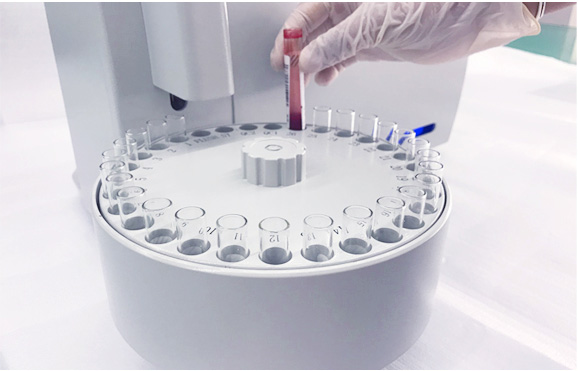

● Vacuum blood collection tube sampling
The instrument can use vacuum blood collection tubes for direct sampling to simplify the sample processing procedure, or sample cups can be selected to meet different clinical needs. 26 sample positions and 4 special sample positions (AC9903, AC9803, AC9603, AC9503).

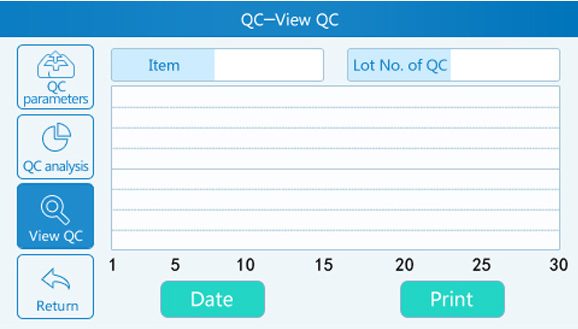

● Quality control chromatogram display
The instrument has quality control analysis data functions. Through quality control statistics and quality control chromatograms, data can be grasped simply and intuitively.
● Supporting reagents (Ion Selective Electrode method)
The electrolyte analyzer (e.g., AC9903) supporting reagents consist of A calibration reagent, B standard reagent, R reaction reagent, C calibration reagent.● Equipped with barcode scanner interface
Equipped with RS232 and USB computer connection interfaces, which can connect barcode scanners with corresponding interfaces. Users can equip as needed to directly identify sample information and reduce manual input workload.● All electrodes adopt full sealing technology to improve electrode stability.
● Adopts full solenoid valve control of the flow path to reduce instrument failure rate.
● Equipped with bubble detection function, can automatically eliminate bubbles.
● Added sample position indicator light and standard solution position indicator light, making reagent liquid level observation intuitive.
● Automatic flushing function enables 24-hour operation to meet emergency needs. Automatic electrode calibration function stabilizes electrode and instrument performance.
| Model | AC9903 | AC9603 | AC9503 | AC9803 | ACA9203 | AC9103 | |
|---|---|---|---|---|---|---|---|
| Measuring Item | K, Na, Cl,
Ca, pH, TCO₂ |
K, Na, Cl,
TCO₂ |
K, Na, Cl | K, Na, Cl,
Ca, pH |
K, Na, Cl,
Ca, pH |
K, Na, Cl | |
| Calculating Item | nCa, TCa, AG | − | − | nCa, TCa | nCa, TCa | − | |
| Measuring Time | ≤100 Seconds | ≤90 Seconds (Include Sampling And Flushing Time) | ≤45 Seconds (Include Sampling And Flushing Time) | ||||
| Sample Size | 160µL | ||||||
| Data Storage | Yes | ||||||
| Communication Interface | Yes | ||||||
| Display | Colorful Touch Display | ||||||
| Sampling Method | Automatic | Manual | |||||
| Sample Pump Calibration | Yes | ||||||
| Power Supply | ~220V±22V、50Hz±1Hz、85VA | ||||||
| Product Size | 408mm×390mm×230mm | ||||||
| Product Weight | 8kg (No Sampler System) | 7kg (No Sampler System) | 6kg (No Sampler System) | ||||
| Measuring Method | Ion Selective Electrode Method | ||||||
| Working Condition | Temperature: 15℃~30℃
Relative Humidity: ≤85% |
||||||
| Companion Reagent Protocol | A calibration reagent, B standard reagent, R reaction reagent, C calibration reagent | A calibration reagent, B standard reagent | |||||
| Complementary cleaning solution plan | Electrode Activation Reagent, Electrode Deproteinization Reagent | ||||||
| Measuring Item | Blood Measuring Range
mmol/L |
Urine Measuring Range
mmol/L |
Accuracy | Precision
(International Standard) |
|---|---|---|---|---|
| K | 0.50~15.00 | 5.0~150.00 | ≤±3.0% | CV≤1.5% |
| Na | 30.0~200.0 | 10.0~350.0 | ≤±3.0% | CV≤1.5% |
| Cl | 30.0~200.0 | 10.0~300.0 | ≤±3.0% | CV≤1.5% |
| Ca | 0.10~5.00 | —— | ≤±5.0% Or 0.05mmol/L | CV≤1.5% |
| pH | 4.0~9.00 | —— | ≤0.15 | CV≤1.0% |
| TCO₂ | 4.0~70.0 | —— | ≤±3.0mmol/L | CV≤3.0% |
| click here to download brochure |
|
|

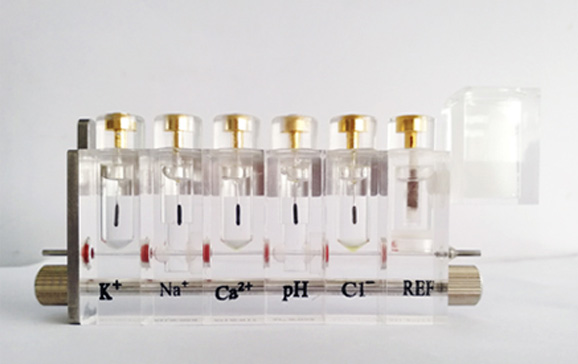

● Electrode Features
Leadless combined ion selective electrode, adoption of excess silver chloride electrode reduces early failure occurrence. All electrodes adopt full sealing technology, improving electrode stability.

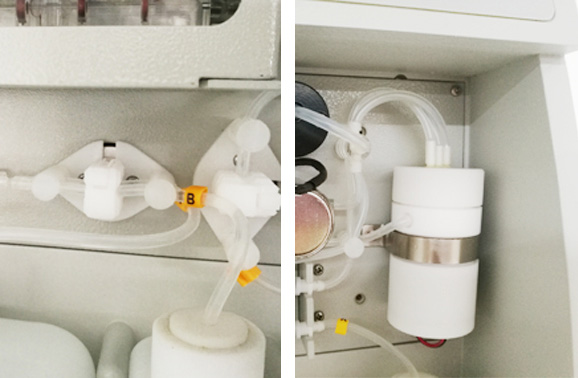

● Flow Path Design
The electrolyte analyzer uses full solenoid valve control of the flow path. Standardized manufactured solenoid valves replace rotary distribution valves, greatly reducing instrument failure rate.

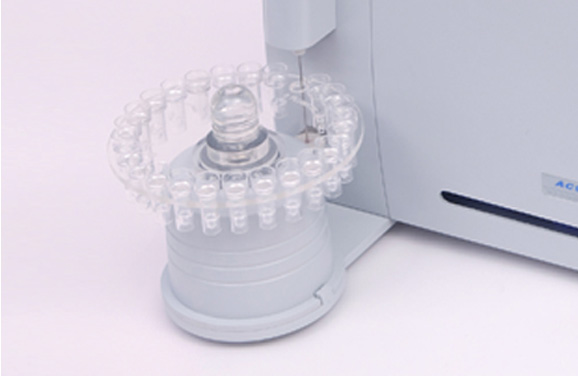

● Independent and Convenient Sampling System (AC9900, AC9800, AC9600, AC9100)
Adopts built-in automatic sampling mechanism and external independent sampling turntable form. Users do not need to modify the original sampling pipeline when purchasing the instrument to achieve fully automatic sampling. Both the built-in automatic sampling mechanism and the external sampling turntable are directly driven by stepper motors instead of gear belt transmission, simplifying the structure and reducing failure rate.

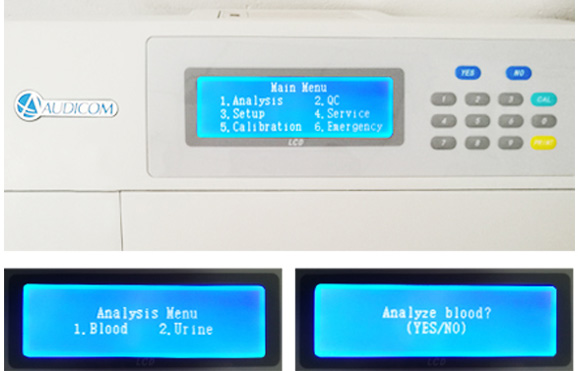

● User-Friendly Operating Interface
The electrode is equipped with an LCD liquid crystal display, YES/NO numeric key combination operation mode, hierarchical menu control, simple operation. Each operator can quickly master the usage method under Chinese guidance in the manual.

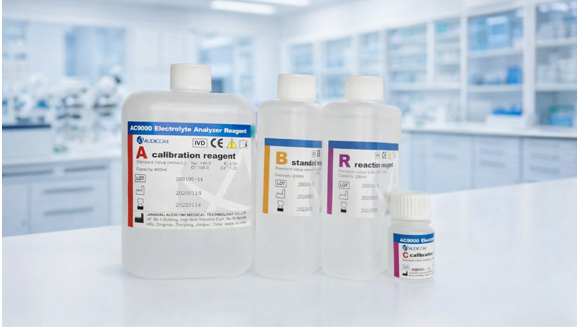

● Supporting reagents (Ion Selective Electrode method)
The electrolyte analyzer (e.g., AC9000) supporting reagents consist of A calibration reagent, B standard reagent, R reaction reagent, C calibration reagent.| Model | AC9900 | AC9600 | AC9800 | AC9100 | ACA9801 | AC9101 |
|---|---|---|---|---|---|---|
| Measuring Item | K, Na, Cl,
iCa, pH, TCO₂ |
K, Na, Cl,
TCO₂ |
K, Na, Cl,
iCa, pH |
K, Na, Cl | K, Na, Cl,
iCa, pH |
K, Na, Cl |
| Calculating Item | nCa, TCa, AG | − | nCa, TCa | − | nCa, TCa | − |
| Measuring Time | ≤90 Seconds (Include Sampling And Flushing Time) | ≤45 Seconds (Include Sampling And Flushing Time) | ||||
| Sample Size | 160µL | |||||
| Data Storage | Yes | |||||
| Communication Interface | 232 Communication Interface | |||||
| Display | 240×64LCD Liquid Crystal Display, Backlight | |||||
| Sampling Method | Automatic | Manual | ||||
| Sample Pump Calibration | Yes | |||||
| Sample bubble detection | Yes | |||||
| Alarm For Waste Liquid Overflow | Yes | |||||
| Printer | 58mm Thermal (Or Needle) Printer | |||||
| Power Supply | ~220V±22V、50Hz±1Hz、85VA | |||||
| Product Size | 408mm×390mm×230mm | 408mm×390mm×220mm | ||||
| Product Weight | 8kg (No Sampler System) | 7kg (No Sampler System) | 8kg (No Sampler System) | 6kg (No Sampler System) | ||
| Measuring Method | Ion Selective Electrode Method | |||||
| Working Condition | Temperature: 15℃~30℃ Relative Humidity: ≤85% | |||||
| Companion Reagent Protocol | A calibration reagent, B standard reagent
R reaction reagent,C calibration reagent |
A calibration reagent, B standard reagent | ||||
| Complementary cleaning solution plan | Electrode Activation Reagent, Electrode Deproteinization Reagent | |||||
| Measuring Item | Blood Measuring Range
mmol/L |
Accuracy | Precision
(International Standard) |
|---|---|---|---|
| K | 0.50~15.00 | ≤±3.0% | CV≤1.5% |
| Na | 30.0~200.0 | ≤±3.0% | CV≤1.5% |
| Cl | 30.0~200.0 | ≤±3.0% | CV≤1.5% |
| Ca | 0.10~5.00 | ≤±5.0% Or 0.05mmol/L | CV≤1.5% |
| pH | 4.0~9.00 | ≤0.15 | CV≤1.0% |
| TCO₂ | 4.0~70.0 | ≤±3.0mmol/L | CV≤3.0% |
