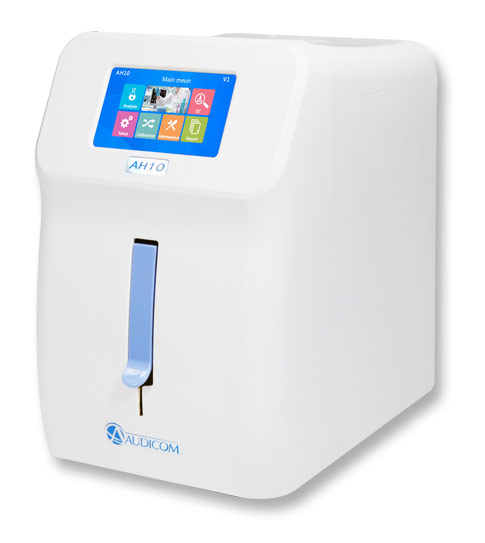

The AH10 Glycated Hemoglobin Analyzer was launched in 2019 and is an LPLC method HbA1c analytical device that has obtained a medical device registration certificate.
It has been sold to more than 20 countries. Its stable performance and quality as well as affordable operating cost have received praise from numerous primary medical institutions.

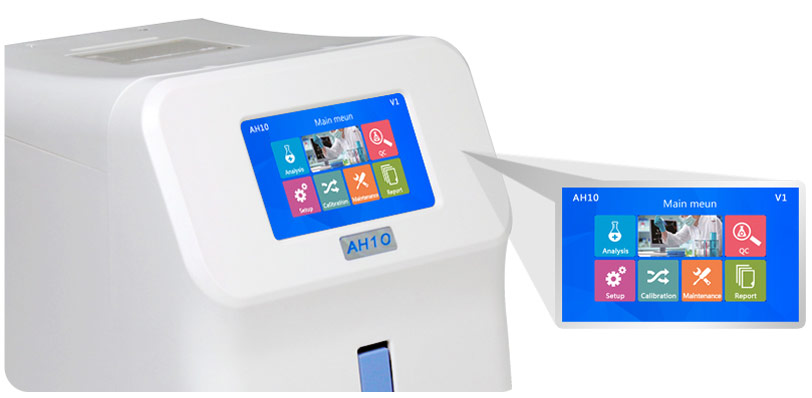

The device is equipped with a color touch screen and barcode scanner function, compact in size, combined with an open structure, intuitive and convenient to operate; it can store 1000 test reports.
The product has built-in quality control chromatogram analysis function, presenting instrument performance and status in real time. With outstanding cost performance, it is suitable for primary hospitals, small laboratories and other scenarios.
● Adopts mold-based production, color touch screen, humanized human-computer interaction UI design.
● Equipped with a barcode scanner interface. Users can equip a scanner as needed to scan sample information.

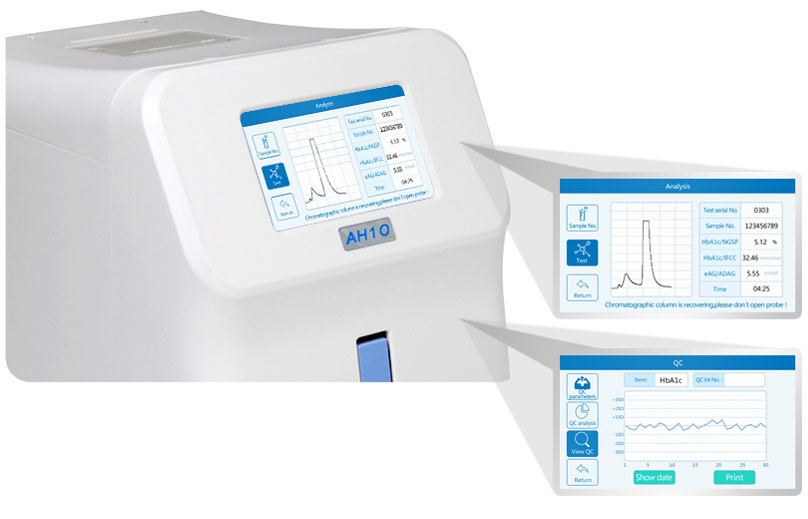

● Real-time chromatographic graph, intelligent process monitoring.
● Quality control chromatogram analysis control, intuitively presenting instrument performance and status.
● Fully open structure, reasonable flow path, low failure rate, easy maintenance.
● Sample query can be performed by time, sequence and patient sample number.
● Original four-gradient elution method.
● 415nm LED integrated photometer.
● Chromatographic column constant temperature device.
● Bubble dissolution and bubble elimination technology.
| Measurement method | Liquid chromatography ion-exchange chromatography. |
| Measurement parameters | Repeatability (CV) ≤3.0% (International standard). |
| Sample injection method | Manual injection. |
| Report output | The test report simultaneously outputs IFCC concentration value, NGSP area percentage and ADAG average blood glucose. |
| Power supply | ~220V±22V、50Hz±1Hz、215VA |
